– General description 2.5-way floorstanding speaker
– Enclosure type bass reflex
– Bass driver 5″(130mm) advanced PP Cone
– Midrange driver 5″(130mm) advanced PP Cone
-Treble driver 1″(25mm) Textile Dome
– AV shield No
– Sensitivity(2.83V @ 1m) 89dB
– Recommended amplifier power 30-150W
– Peak SPL 102dB
– Nominal impedance 8Ω Compatible
– Minimum impedance 5Ω
– Frequency response(+/-3dB) 45Hz ~ 20kHz
– Bass extension(-6dB) 40Hz
– Crossover frequency 2.2kHz
– Cabinet Volume (in litres) 26.6L
– Dimensions ( H x W x D ) (925+50) x 180 x (320+28) mm
– Net weight 19.5kg/pcs

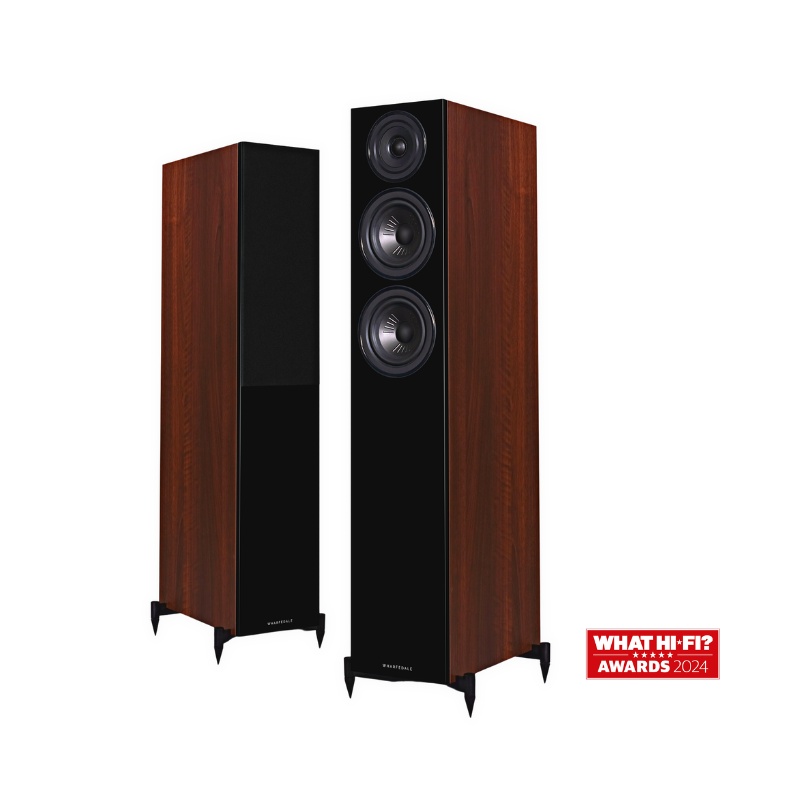

Diamond 12.3The more compact of the Wharfedale DIAMOND 12 series floorstanding options, the DIAMOND 12.3 loses none of the accuracy and musicality of the standmount (bookshelf) options. With enhanced presence and power, the DIAMOND 12.3 is refined and the perfect, affordable floorstanding speaker for 2-channel hi-fi systems, or as the front pair of a seriously impressive home theatre system.Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.3 utilises dual 130mm (5”) KlarityTM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies.
