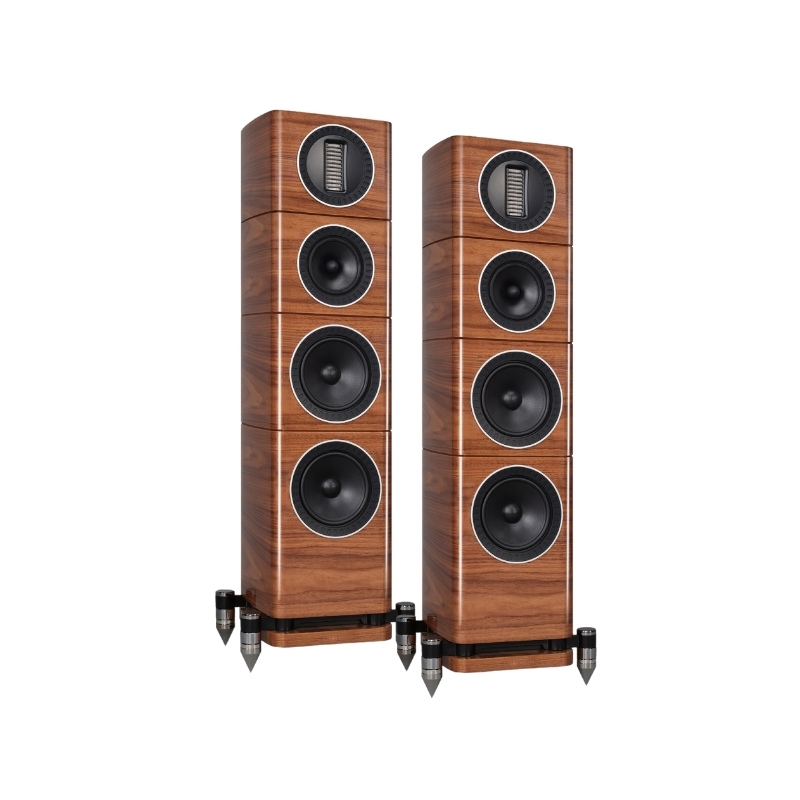

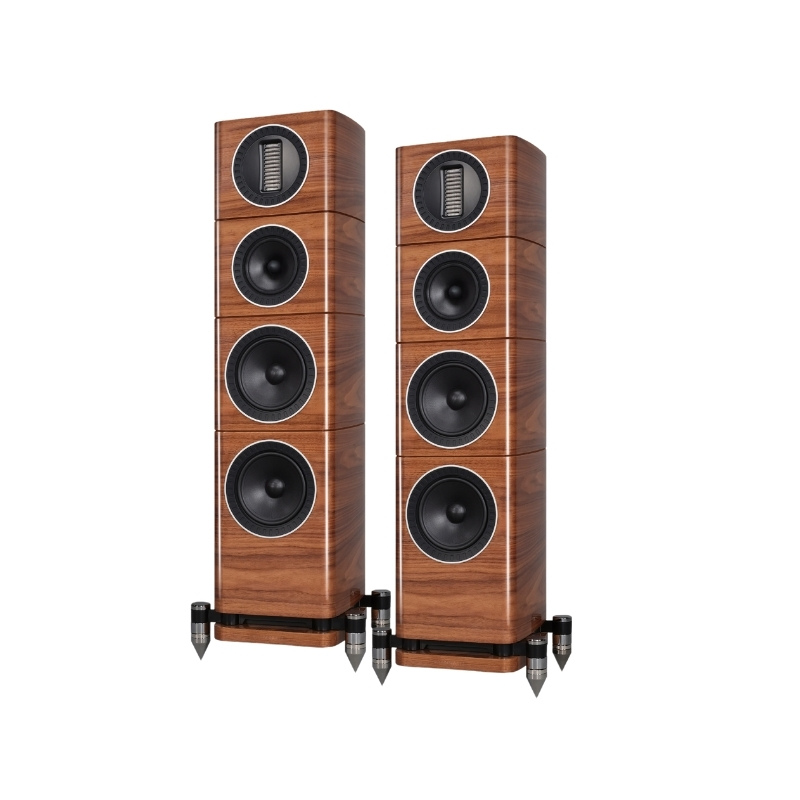

Wharfedale Elysian3

General Description           3-way floorstanding speaker
Enclosure Type                 Bass reflex
Transducer Complement    3-way
Bass Driver                      7″ (180mm) coated fibre glass
matrix cone x 2

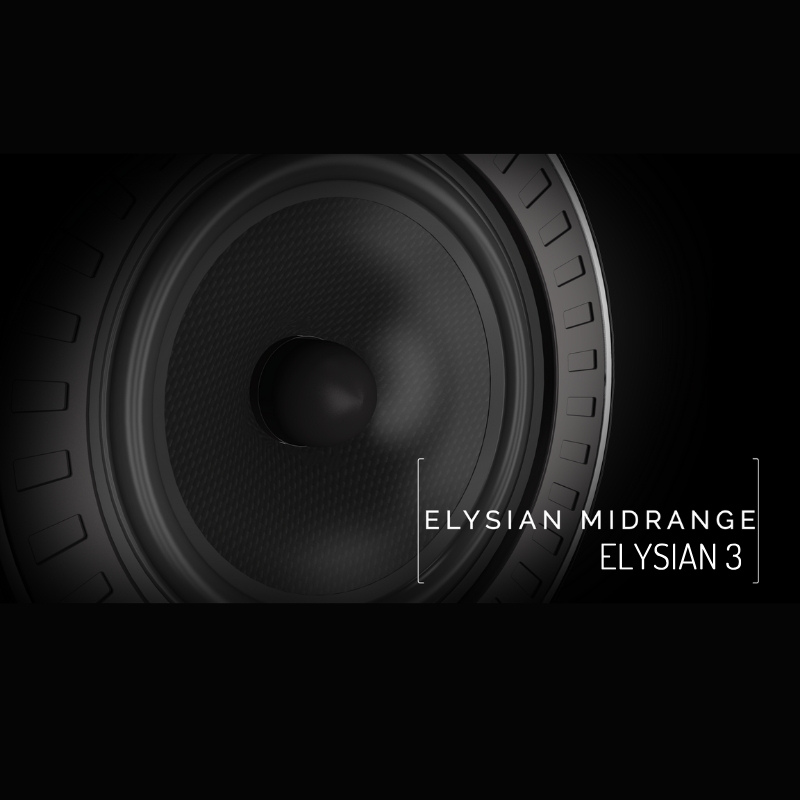

Midrange Driver                6″ (150mm) coated fibre glass
matrix cone
Treble Driver                     27 x 90mm AMT
AV Shield                          No
Sensitivity (2.83V @ 1m)    89dB
Recommended Amplifier Power 30-200W
Peak SPL                          108dB
Nominal Impedance           4Ω (compatible 8Ω)
Minimum Impedance          2.3Ω
Frequency Response (+/-3dB)  44Hz ~ 22kHz
Bass Extension (-6dB)              35Hz
Crossover Frequency                375Hz, 2.9kHz
Cabinet Volume (in litres)          9.4L, 35L
Dimensions (mm)
Height (on plinth)                    1050mm
Width (on plinth)                     263mm
Depth (with terminals)            (285+30)mm
Carton Size                            425 x 415 x 1155
Net Weight                            28.45kg/pcs
Gross Weight                         35.37kg/ctn
