QUAD 33
54,000 ฿
OverviewSpecifications

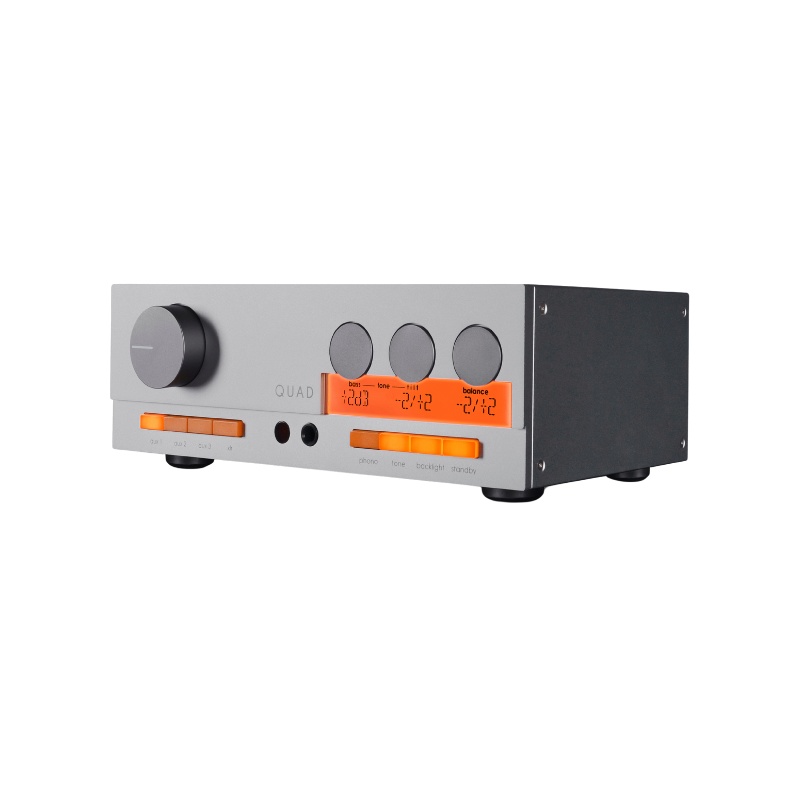

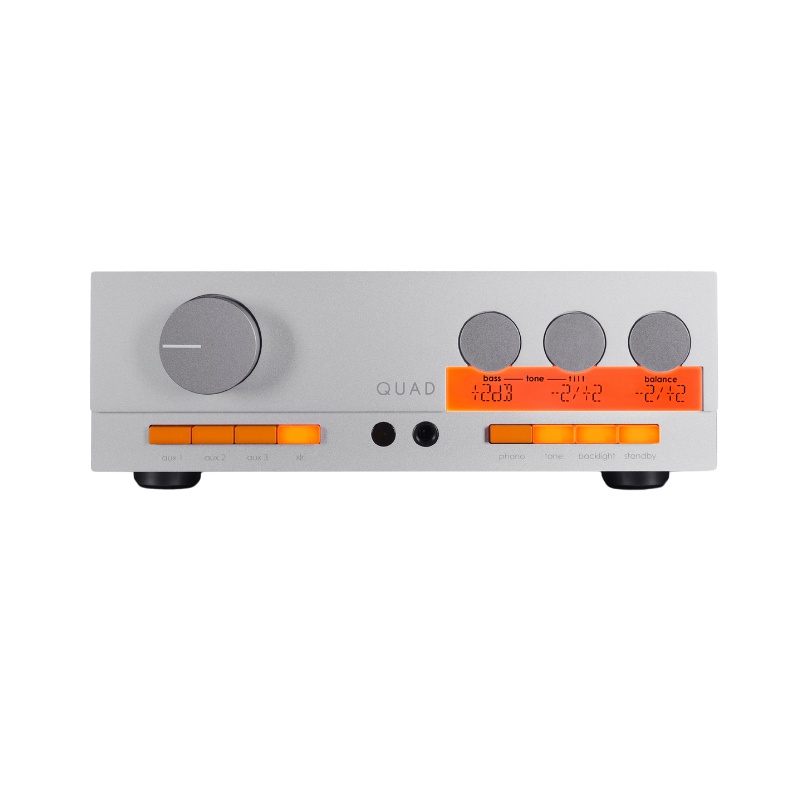

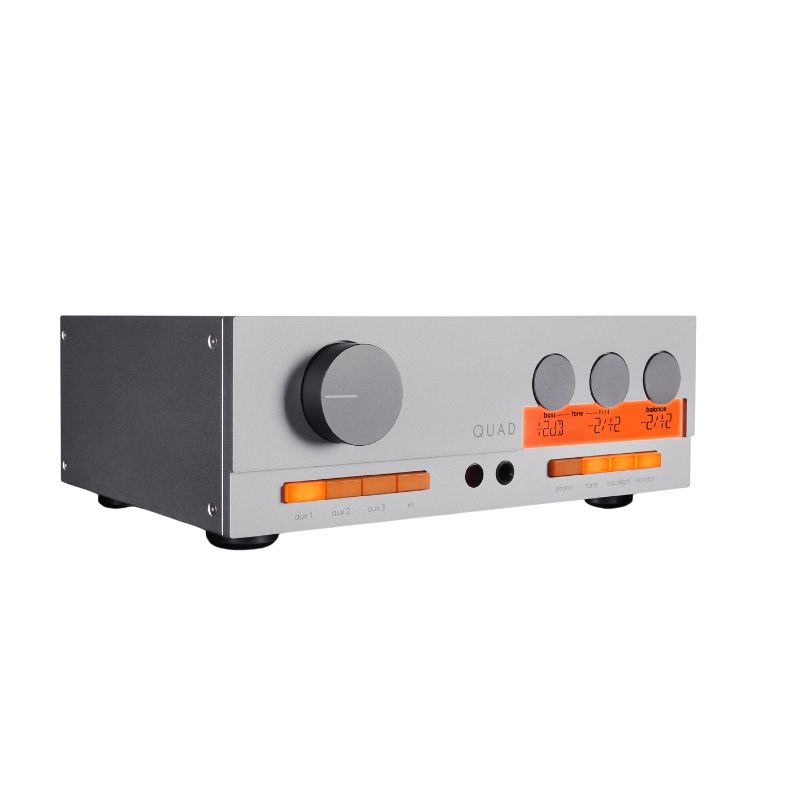

The Quad 33 proves to be an impressive preamplifier.It is pleasantly easy to use thanks to well thought-out details such as the illuminated control buttons and the intuitive tilt control.In terms of sound,the Quad 33 impresses with its clarity,precision and a warm,musical note that will particularly appeal to vinyl lovers. Despite its analogue.
| General Description | Pre Amplifier |
| Design Philosophy and Core Technology | Illuminated LCD screen Dedicated High Performance Low Noise MM/MC Phono stage Classic QUAD ‘Tilt’ adjustment Classic QUAD / Tone Controls Dedicated Current-Feedback Headphone Amplifier |

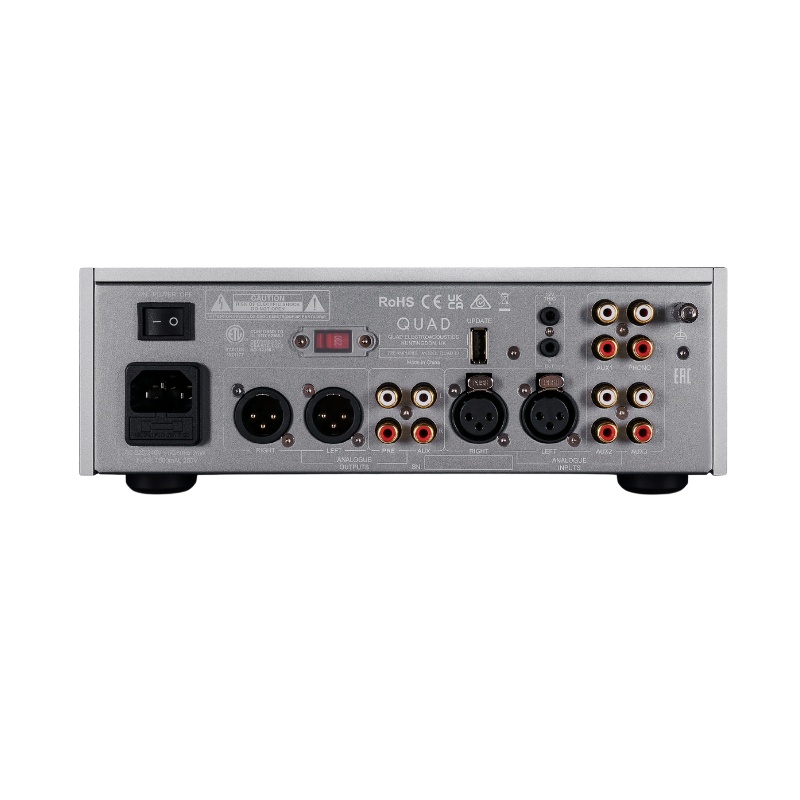

| Inputs | 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable) |
| Outputs | 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out |
| Pre Amplifier Section | |
| Gain | 0dB (Line / XLR) +46dB (Phono MM) +63.5dB (Phono MC) |
| Input Sensitivity (Vout=695mV) | 695mV (Line / XLR) 3.2mV (Phono MM) 460uV (Phono MC) |
| Input Impedance | 10k (Line / XLR) 47k/100pF (Phono MM) 100R/1.7nF (Phono MC) |
| Total Harmonic Distortion (THD) | <0.0005% (1kHz, Line/XLR) <0.002% (1kHz, Phono MM / MC) |
| Frequency Response | 20Hz – 20kHz (+/-0.2dB) |
| Signal-to-Noise ratio (S/N) | > 108dB (A-weighted, Line/XLR) > 82dB (A-weighted, Phono MM) > 74dB (A-weighted, Phono MC) |
| Output Impedance | 120 ohms |
| Headphone Amplifier | |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
| Output Impedance | 2.35 ohms |
| Load Impedance | 20 – 600 ohms |
| General | |
| Standby Power Consumption | <0.5W |
| Net weight | 4kg |
| Gross weight | 4.96kg |
| Dimensions (mm) (W x H x D) | 258 x 82.9 x 165 |
| Carton Size (mm) (W x H x D) | 330 x 192 x 257 |
| Finish | Classic QUAD Grey |
| Power requirements (depending on region) | 220 – 240V – 50 / 60Hz 100 – 120V – 50 / 60Hz |
